Configure your 5 Megapixel Mid-Range IR Bullet IP Camera

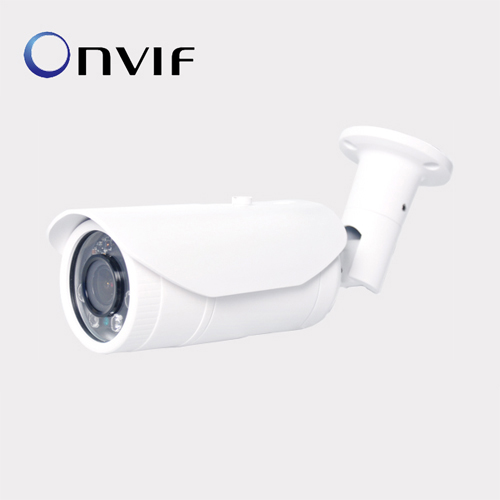

X5-5MP-B-IR-3310-MR Camera

Options | Accessories | Photo Gallery | Spec Sheet

Ascendent's X5-5MP-B-IR-3310-MR is part of our new 5 Megapixel line of camera. It offers over 2x the resolution of a standard 1080P camera for clear crisp images with stunning detail. The X5-5MP-B-IR-3310-MR features an integrated mount and sun shield for easy installation. With a 3.3-10.5mm varifocal lens the X5-5MP-B-IR-3310-MR can provide a wide angle view or a zoomed image for identification of objects that are further away. The motorized lens option allows installers to quickly change this after installation. Mid-range IR LEDs offer up to 30m of illumination at night.
C Series and ONVIF compatibility ensure smooth operation with our X5S Standalone NVRs, X5 VMS, and third party softwares.

POE Supported
Available Now!

NOTE: Due to the resolution of 5MP CMOS sensors, object or persons that are at far distances may not trigger motion detection due to the smaller percentage of total pixels a person or vehicle takes up. For reliable motion detection on these cameras, avoid very wide FOVs and test the motion detection during installation to verify that performance is satisfactory.


IP Camera Lens

Select your preferred lens for your IP camera.

  • 3.3-10.5mm Lens
  • 3.3-10.5mm Motorized Lens

Software License

Choose a license for your IP camera. An X4 or X5 software license is required for use with X4/X5 PC based DVR/NVRs. If the IP camera will be used with an X4S NVR, please select X4S IP Cam License.

  • X4S NVR IP Cam License


Network Cable

Pre-made Cat5e cable for quick and easy connection of IP Cameras, DVRs, NVRs, and Video Servers.

  • None
  • 3ft Cat5e Network Cable
  • 5ft Cat5e Network Cable
  • 10ft Cat5e Network Cable
  • 25ft Cat5e Network Cable
  • 50ft Cat5e Network Cable
  • 100ft Cat5e Network Cable

Power Supply

Power your cameras with Ascendent's power supplies to ensure your cameras receive sufficient power.

  • None
  • 12VDC Power Supply 2000mA


Wireless Radios allow any network device to be wirelessly transmitted to an existing TCP/IP network.

  • None
  • Wireless Access Point IP Radio (Single Radio) 5GHz 300Mbps
  • Wireless Access Point IP Radio (Single Radio) 5GHz 300Mbps
  • Wireless Network Bridge Radio Dish Antenna 5GHz (Single Radio)
  • Wireless Access Point IP Radio (Single Radio) 5GHz 1Gbps
