Ascendent Technology Group

Configure your Rapid Eye V550

File Downloads

RE-V550 Camera

Options | Accessories | Photo Gallery | Spec Sheet

Demo Video: http://www.youtube.com/watch?v=ZYbqGGxF2KQ

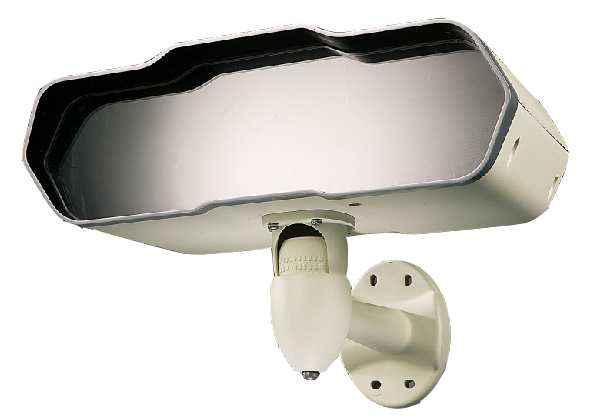

Rapid Eye is a tracking surveillance system with two cameras and a mirror mechanism design. It has a unique ability to automatically track multiple moving targets and capture excellent detail of moving targets. The camera can cover a very large area (70°x105 meters) and provide crystal clear images (160 pixel/meter) at the same time, making it equivalent to a 365 Mega Pixel camera.

There are two cameras inside each Rapid Eye, a wide angle camera and a telescopic camera. The wide angle camera first takes the panoramic image. The built in DSO then analyzes the image and locates the targets. The mirror rotates the telescopic camera to acquire detailed view of the target. The panoramic process takes only 0.12th of a second meaning that it can capture different images 5 times a second, allowing the Rapid Eye to cover vast areas with the ability to identify targets.

Request a brochure: info@ascendentgroup.com

Accessories

Uninterruptible Power Supplies

Protect your system with one of our uninterruptible power supplies. Enhance the integrity of your surveillance system with constant voltage to ensure longevity of your system.

  • None
  • 550 Auto Voltage Regulation
  • 685 Auto Voltage Regulation

Wireless

Wireless Radios allow any network device to be wirelessly transmitted to an existing TCP/IP network.

  • None
  • Weatherproof Box and Antenna Extension for Wireless Analog Extender
  • Wireless Network Bridge Radio Dish Antenna 5GHz (Single Radio)
  • Wireless Analog Extender
  • Wireless Analog Extender with PTZ Controls (Weatherproof)
  • Long Range Wireless Analog Extender with PTZ Controls
