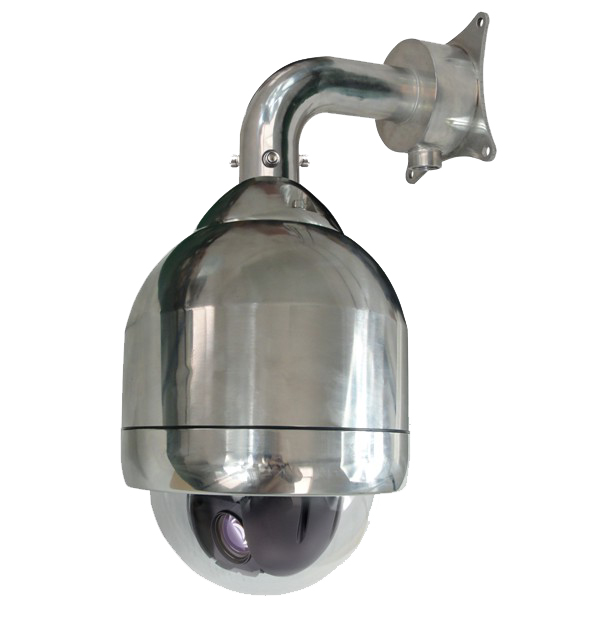

ATX-PTZ-37X Camera
Options | Photo Gallery | Spec Sheet
Key Features:
• Integrated plug-and-play pan-tilt camera system
• 360° continuous pan rotation
• Tilt range of +90° to -2° from horizontal
• Extreme weather -55°C to +60°C IP 68 sealed
• Dual-layer electropolished stainless steel
• Up to 10 years of service life
• High resolution 37X day/night zoom camera
• Integrated junction box for easy installation
• Surge and lightning protection
• Intrinsically safe and ATEX certified Zone 1 and 2
• ExII 2GD ExdII CT6 and ExtD A21 T80C
• Pelco D/P protocol via RS-485
• OSD to program pan-tilt positioner and camera.
Specifications
Intrinsically Safe
The ATX-PTZ-37X is explosion proof ATEX certified including
ExII 2GD ExdII CT6 and ExtD A21 T80C. The
dual-cast stainless steel is available in both 304 and
316L and contains explosive proof cable leads for
installation in hazardous environments from petrochemical
processing to oil and gas (Zone 1 and 2
rated).
Precision Engineering
Designed to be high quality, robust, and extremely
rugged, in order to provide reliable surveillance in the
most demanding situations. Micro-Step motor allows
for accuracy of up to 0.02° along with 360° continuous
pan and tilt from -2° to 90° with integrated autoflip.
Guard tours and presets allow for manned and
unmanned monitoring 24 hours a day 7 days a week.
Adaptive Light Performance
The ATX series contains integrated OSD programming
to allow the customization of nearly every aspect
of the camera to suit any application. Included
are features such as wide dynamic range (WDR),
highlight compensation (HLC), targeted backlight
compensation (TBL), and auto white balance (AWB),
as well as other image enhancing technologies.
Extreme Environments
Our state-of-the-art optics are integrated in an industry
leading IP 68 housing to handle even the
most brutal environments. A heater/blower allows
for operation in temperatures from -55°C to +60°C.
Electropolishing provides a microscopically smooth
surface for low maintenance and long service life delivering
industry leading ROI.
Superb Image Quality
A 1/4” Ex-View HAD II CCD sensor delivers 600TVL
color by day and 700TVL monochrome at night.
A 3.5mm-129.5mm lens provides an optical zoom
factor of 37X for extreme wide angle and narrow fields
of view. Other sensors are available upon request
including IP, HD, and SDI to suit any application.
Integrated Solution
The ATX-PTZ-37X is a completely integrated system
with high resolution sensor and optics, pan-tilt motor,
and a built in junction box for power and video
connections. Suitable for applications such as marine,
fueling stations, munitions storage depots, grain
processing, manufacturing plants, and other hazardous
and corrosive environments.
