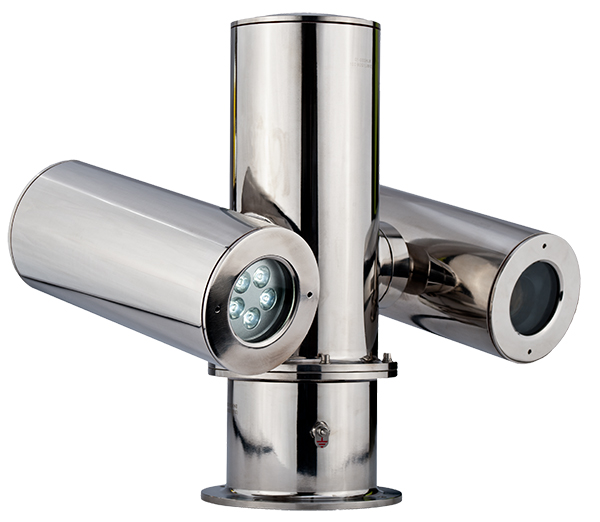

ATX-PTZ-37X-IR Camera
Options | Photo Gallery | Spec Sheet
Key Features:
• Integrated plug-and-play pan-tilt camera system
• 360° continuous pan rotation
• Tilt range of +90° to -90° with no blind spots
• Extreme weather -55°C to +60°C IP 68 sealed
• Dual-layer electropolished stainless steel
• Up to 10 years of service life
• High resolution 37X day/night zoom camera
• Active IR for true day/night operation
• Surge and lightning protection
• Intrinsically safe and ATEX certified Zone 1 and 2
• ExII 2GD ExdII CT6 and ExtD A21 T80C
• Pelco D/P protocol via RS-485
• OSD to program pan-tilt positioner and camera
Intrinsically Safe
The ATX-PTZ-37X-IR is explosion proof and ATEX certified
including ExII 2GD ExdII CT6 and ExtD A21 T80C.
The electropolished dual-cast stainless steel is available
in both 304 and 316L for installation in hazardous
environments ranging from petrochemical processing
to oil and gas (Zone 1 and 2 rated).
Superb Image Quality
A 1/4” Ex-View HAD II CCD sensor delivers 600TVL color
by day and 700TVL monochrome at night. A 3.5mm-
129.5mm lens provides an optical zoom factor of 37X
for extreme wide angle and narrow fields of view.
Other sensors are availabe upon request including
IP, HD, and SDI to suit any application. The ATX-PTZ-
37X-IR comes equipped with active IR illumination for
monitoring even in complete darkness.
Extreme Environments
Our state-of-the-art optics are integrated in an industry
leading IP 68 housing to handle even the most
brutal environments. A heater/blower and optinal
wiper allows for operation in temperatures from -55°C
to +60°C. Electropolishing provides a microscopically
smooth surface for low maintenance and long service
life delivering industry leading ROI.
Precision Engineering
Designed to be high quality, robust, and extremely
rugged, this camera provides reliable surveillance in
the most demanding situations. A Micro-Step motor
allows for accuracy of up to 0.02° along with 360° continuous
pan and tilt from +90° to -90° with integrated
auto-flip. With guard tours and presets manned and
unmanned operation can provide monitoring 24
hours a day 7 days a week.
Adaptive Light Performance
This camera contains integrated OSD programming
allowing customization of nearly every aspect of the
camera for any application. Included are features such
as wide dynamic range (WDR), highlight compensation
(HLC), targeted backlight compensation (TBL), and
auto white balance (AWB), as well as other image
enhancing technologies.
Integrated Solution
The ATX-PTZ-37X-IR is a completely integrated system
with high resolution sensor and optics. It has a number
of options such as sunshield, heater, blower, wiper,
and washer. It is suitable for applications such as marine,
fueling stations, munitions storage depots, grain
processing, manufacturing plants, and other hazardous
and corrosive environments.
