Configure your 5MP 360° Fisheye IP Camera

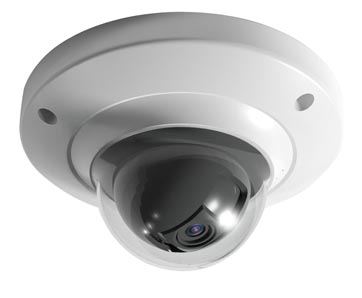

5MP-VRD-360FE-CS Camera

Options | Accessories | Photo Gallery | Spec Sheet

Ascendent‘s new 5MP-VRD-360FE-CS camera is powered by a 1/3” 5MP progressive scan CMOS sensor that renders incredible HD images with accurate color reproduction and clarity. The 1.42mm Fisheye lens is ideal for 360° wide-angle observational viewing allowing it to replace multiple standard fixed lens cameras. With advanced de-warping algorithms and digital zoom to capture even minute details.
The progressive-scan sensor, in tandem with H.264B
compression, eliminates motion blur for crystal clear
images making this a clear choice for
security professionals.

1/3" 5MP Progressive Scan CMOS

H.264 & MJPEG Dual-Stream Compression

12fps@5MP (2560x1920), 25/30fps@2MP (1600x1200)

Multiple Dewarping Display Modes:
Panoramic, Dual Panoramic, ePTZ, Split Screen: 1+3/4

DWDR, Day/Night (ICR), 3D-DNR, AWB, AGC, BLC

Remote Monitoring with iPhone, iPad or PC
(Internet Browser, ARMS Pro/HD, X5 Synergy VMS)

Ultra-wide 185° 1.42mm Fisheye Lens
offering a 360° Panoramic View

Edge Recording via SD Card

IK10 Housing

PoE: Power, Video & Control over a Single CAT5 Cable

Available Now!


Software License

Choose a license for your IP camera. An X4 or X5 software license is required for use with X4/X5 PC based DVR/NVRs. If the IP camera will be used with an X4S NVR, please select X4S IP Cam License.

  • X4S NVR IP Cam License
  • X5 IP Cam License
  • X4 IP Cam License


Network Cable

Pre-made Cat5e cable for quick and easy connection of IP Cameras, DVRs, NVRs, and Video Servers.

  • None
  • 3ft Cat5e Network Cable
  • 5ft Cat5e Network Cable
  • 10ft Cat5e Network Cable
  • 25ft Cat5e Network Cable
  • 50ft Cat5e Network Cable
  • 100ft Cat5e Network Cable


Networking equipment and accessories.

  • None
  • 8 Port Gigabit Network Switch
  • 5-Port Gigabit Switch w/4 PoE Ports
  • 9-Port Gigabit Switch w/8 PoE Ports
  • 16 Port Gigabit Switch
  • 10-Port Gigabit Switch w/8x 250 Meter PoE Ports
  • 24 Port Gigabit Network Switch

Power Supply

Power your cameras with Ascendent's power supplies to ensure your cameras receive sufficient power.

  • None
  • 12VDC Power Supply 2000mA
  • 12VDC Power Supply 5000mA
  • 4 Channel 12VDC Power Box
  • 9 Channel 12VDC Power Box
  • 18 Channel 12VDC Power Box


Wireless Radios allow any network device to be wirelessly transmitted to an existing TCP/IP network.

  • None
  • Indoor Wireless Radio Extender/Bridge
  • Wireless Access Point IP Radio (Single Radio) 5GHz 300Mbps
  • Wireless Access Point IP Radio (Single Radio) 5GHz 300Mbps
  • Wireless Network Bridge Radio Dish Antenna 5GHz (Single Radio)
  • Wireless Access Point IP Radio (Single Radio) 5GHz 1Gbps
