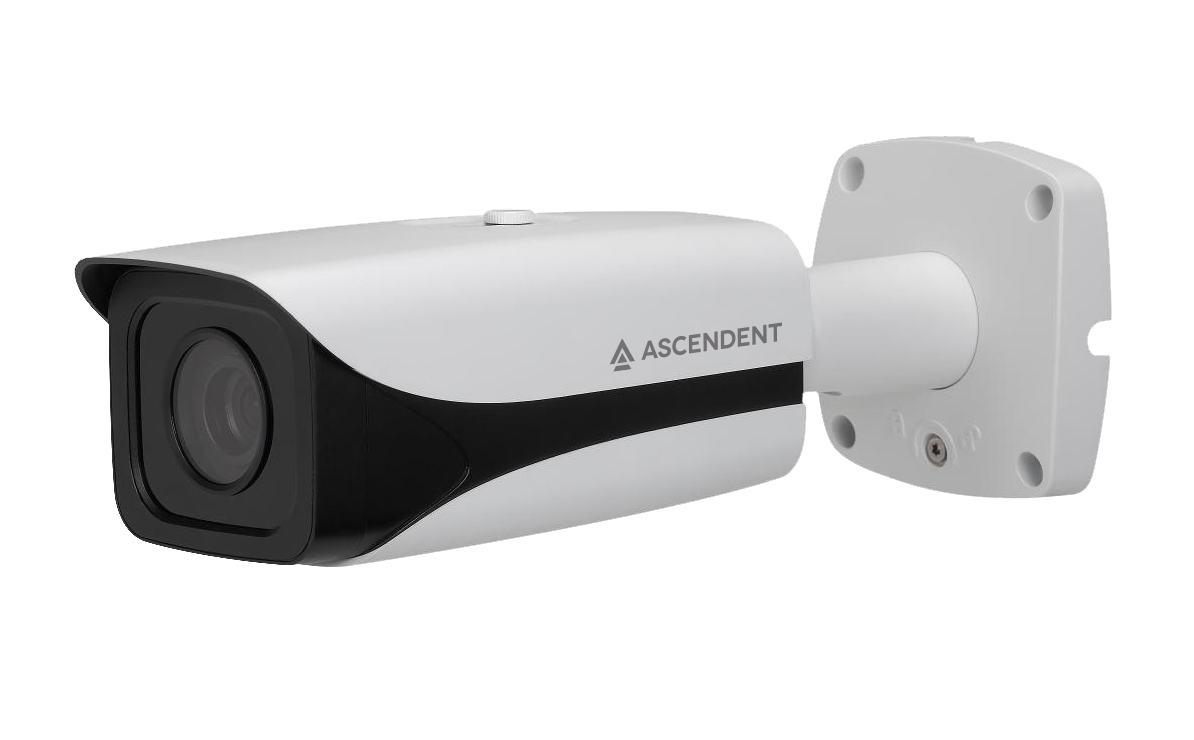

Configure your 4MP Bullet IR Camera w/AVA Video Analytics and Face Detection

4MP-B-IR-2812-MZ-AVA-CS Camera

Options | Accessories | Photo Gallery | Spec Sheet

The 4MP-B-IR-2812-MZ-AVA-CS maintains all of the advantages of our C Series cameras, while adding Video Analytics such as:Tripwire, Perimeter Intrusion, Missing/Abandoned Objects, and Face Detection.

• 1/3" 4 Megapixel Progressive Scan CMOS
• Supports H.264 & MJPEG Compression
• Max 20fps@4MP or 25/30fps@3MP
• WDR (120dB), Day/Night (ICR), 3D-DNR, Auto Iris, AWB, AGC, BLC
• AVA Analytics: Face Detection, Bi-Directional Tripwire,
Perimeter Intrusion Detection
• Remote Monitoring with iPhone, iPad or PC
(Internet Browser, ARMS Pro/HD, X5 Synergy VMS)
• 2.8mm–12mm Motorized Zoom Lens offering a 82–25° Field of View
• 50m/160f IR LED Distance
• 100/1000M Base-T Ethernet, PoE
• Edge Recording via SD Card
• Extra-Rugged IP67 Housing
• Integrated 3-Axis Mount


POE Supported.

Options

Software License

Choose a license for your IP camera. An X4 or X5 software license is required for use with X4/X5 PC based DVR/NVRs. If the IP camera will be used with an X4S NVR, please select X4S IP Cam License.

  • X4S NVR IP Cam License
  • X5 IP Cam License
  • X4 IP Cam License

Accessories

Networking

Networking equipment and accessories.

  • None
  • 5-Port Gigabit Switch w/4 PoE Ports
  • 9-Port Gigabit Switch w/8 PoE Ports
  • 10-Port Gigabit Switch w/8x 250 Meter PoE Ports

Power Supply

Power your cameras with Ascendent's power supplies to ensure your cameras receive sufficient power.

  • None
  • 12VDC Power Supply 2000mA
  • 12VDC Power Supply 5000mA
  • 4 Channel 12VDC Power Box
  • 9 Channel 12VDC Power Box
  • 18 Channel 12VDC Power Box

Wireless

Wireless Radios allow any network device to be wirelessly transmitted to an existing TCP/IP network.

  • None
  • Indoor Wireless Radio Extender/Bridge
  • Wireless Access Point IP Radio (Single Radio) 5GHz 300Mbps
  • Wireless Access Point IP Radio (Single Radio) 5GHz 300Mbps
  • Wireless Network Bridge Radio Dish Antenna 5GHz (Single Radio)
  • Long Range Wireless Analog Extender with PTZ Controls
  • Wireless Access Point IP Radio (Single Radio) 5GHz 1Gbps
