Ascendent Technology Group

250m Photo-Electric Beam Detector w/LED Display


Photo Gallery

The IRT Series is Ascendent's new line of active Photo-Electric beam detectors. These detectors create an invisible IR tripwire between two sensors, which when broken will trigger an alarm output. When used in tandem with Ascendent's HVRs, NVRs, or IP cameras, the IRT series allows for unparalleled reliability in perimeter detection, as they will only trigger an alarm when something physically crosses the beam. With models ranging from 20-250m, the
IRT series is perfect for scenarios where intrusion detection and notification is critical.

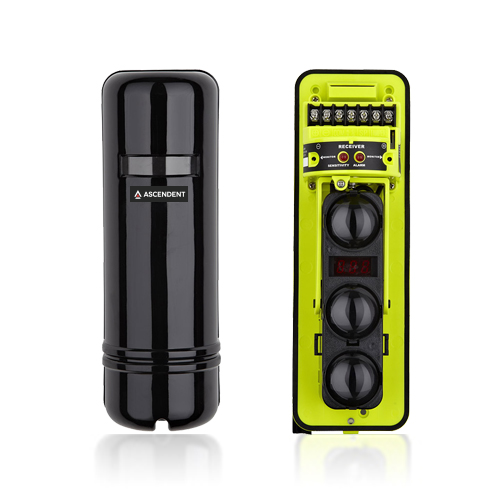

The IRT-250M-P is our top of the line IRT model and is rated for up to 250m, and features triple beams and a digital LED display for precise calibration and signal strength display.

250m Detection
Tamper Output Alarm
LED signal strength display for easy calibration
Triple Beam Detectors
Response Time: 50-700ms (depending on distance)
Dual Axis Adjustment: Vertical ±5°, Horizontal ±90°
Wavelength: 940nm
Relay Output: NO/NC .5A, 30V Max
Ingress Protection: IP65
Temperature: -25℃~+55℃ RH ≤95%
Power: 85mA/12VDC
