100m Photo-Electric Beam Detector


Photo Gallery

The IRT Series is Ascendent's new line of active Photo-Electric beam detectors. These detectors create an invisible IR tripwire between two sensors, which when broken will trigger an alarm output. When used in tandem with Ascendent's HVRs, NVRs, or IP cameras, the IRT series allows for unparalleled reliability in perimeter detection, as they will only trigger an alarm when something physically crosses the beam. With models ranging from 20-250m, the
IRT series is perfect for scenarios where intrusion detection and notification is critical.

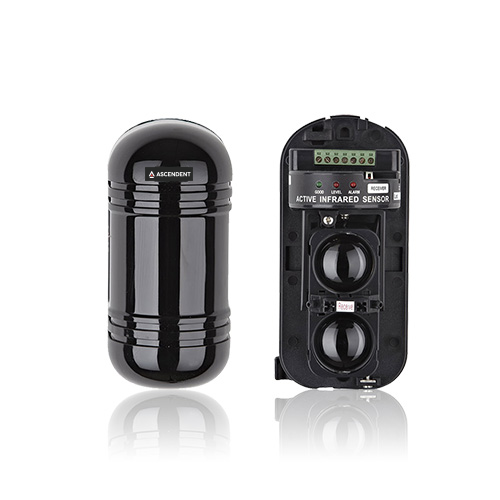

The IRT-100M is the mid-range IRT model and is rated for up to 100m.

100m Detection
Tamper Output Alarm
Calibration LEDs for easy setup
Dual Beam Detectors
Response Time: 50-700ms (depending on distance)
Dual Axis Adjustment: Vertical ±10°, Horizontal ±90°
Wavelength: 940nm
Relay Output: NO/NC .5A, 30V Max
Ingress Protection: IP65
Temperature: -25℃~+55℃ RH ≤95%
Power: 65mA/12VDC
