Ascendent Technology Group

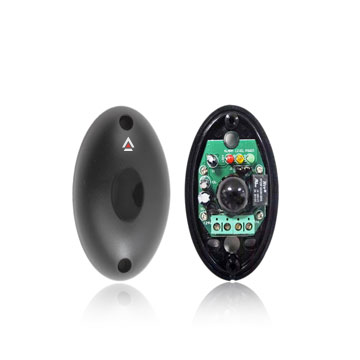

20m Photo-Electric Beam Detector

IRT-20M

Photo Gallery

The IRT Series is Ascendent's new line of active Photo-Electric beam detectors. These detectors create an invisible IR tripwire between two sensors, which when broken will trigger an alarm output. When used in tandem with Ascendent's HVRs, NVRs, or IP cameras, the IRT series allows for unparalleled reliability in perimeter detection, as they will only trigger an alarm when something physically crosses the beam. With models ranging from 20-250m, the
IRT series is perfect for scenarios where intrusion detection and notification is critical.

The IRT-20M is the entry level IRT model and is rated for up to 20m.

Features:
20m Detection
Response Time: 50ms
Wavelength: 940nm
Relay Output: 1A, 30V Max
Temperature: -25℃~+55℃ RH ≤95%
Power: 40mA/12VDC
