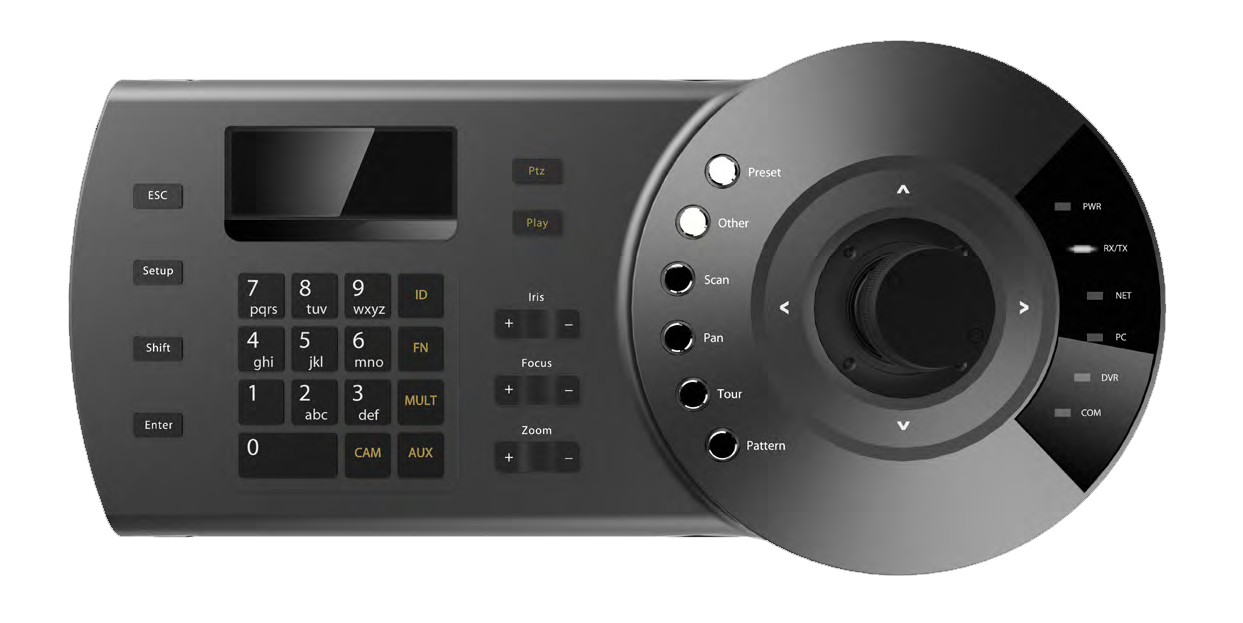

X5S-PTZ-KB-IP
Photo Gallery
Features
• Control & Display:
- Standalone NVR/DVR
- IP PTZ Cameras
- IP Cameras
• RS232, RS422, RS485, USB & Network Connections
• Three Dimensional Joystick PTZ Control
• Supports Video Matrix Display
• Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control
• LCD Screen Display, On-Screen Menu & User Operation
Procedure Tips
• IP Monitor Protocols/ RS 485 Control Interface
Keyboard Panel: Electromechanical
Joystick: 3-axis, vector-solving, w/twisting, return to-center head
Connector: RJ-45, RS232, RS485, RS422, USB
Connector Distance: 1200m
Control:
Direct Mode: RS232/RS485 PELCO-D/PELCO-P/PELCO-D1
Network Mode: RJ-45 DVR/NVR/IP Camera
Power Adapter: Input 100V~240V 50Hz/60Hz, Output DC12V/1000mA
Power Consumption: 5W
Working Temperature: -10°C ~ +55°C
Working Humidity: 10% ~ 90%
Atmosphere Pressure: 86kpa ~ 106kpa
Dimension: (W×D×H) 330mm × 160mm × 38mm (excluding joystick)
Weight: 2.5kg
