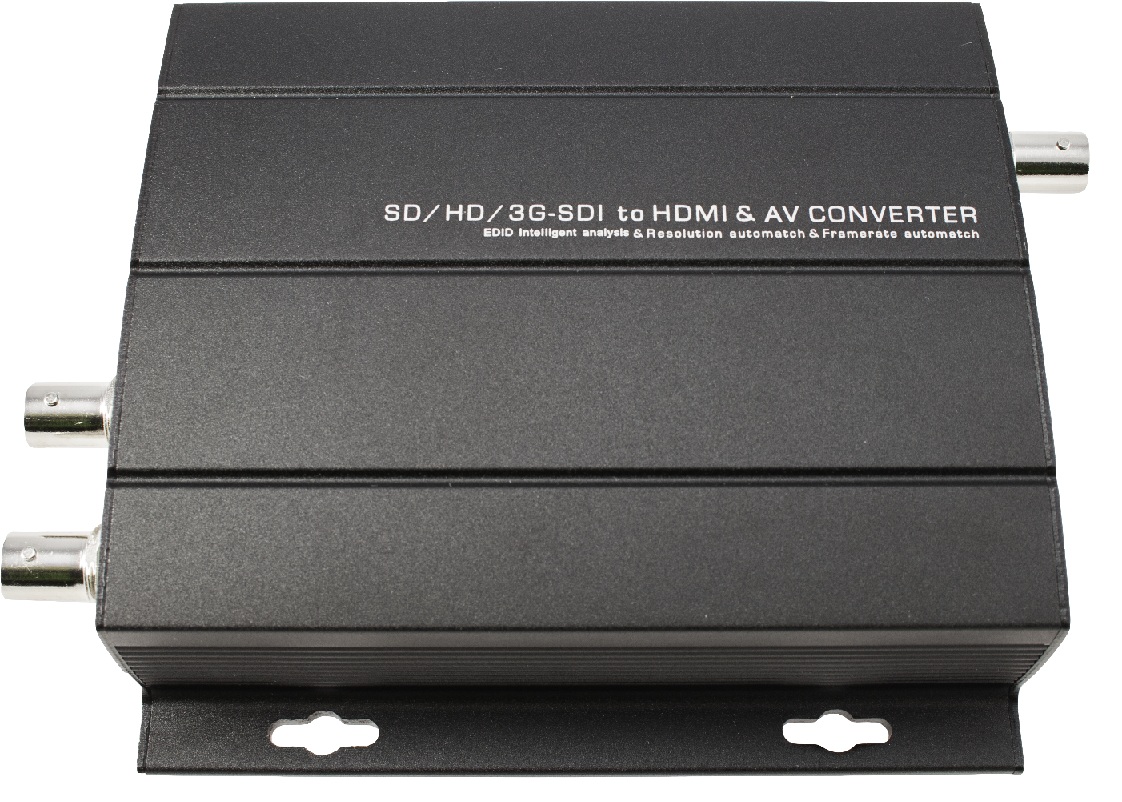

SDI to HDMI & CV Converter with SDI Loop Through


Photo Gallery

Display and monitor an SDI video feed via HDMI or composite video using this multi-output converter. Featuring an SDI loop through so that it can be used in-line, allowing you to split from your existing SDI feed to an HD monitor or even a non-HD device.

Input format: SDI
Output format: SDI loop through and user selectable HDMI and CVBS

SDI loop out interface: 1x BNC SDI
SDI signal range: 0.8V p-p
SDI impedance: 75 ohms
Power: 5V ~ 24V DC (supply included)
Power consumption: 6 Watts (max)
Operable temperature: 0°C ~ 40°C
