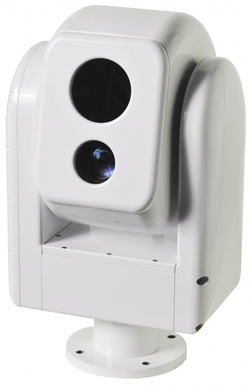

M-NAV-37X-TI

Rugged Gyro stabilized 2 Axis IP 67 Marine Thermal & Optical PTZ Camera with Slew to Cue

The M-Navigator is designed by Ascendent specifically for marine navigation, and offers a compelling alternative to the conventional imaging in virtually any environment, from heavy fog to complete wide angle and narrow views for unparalleled situational awareness allowing them to properly assess potential hazards, and threats at great distances with a high level of accuracy. The high-resolution optical camera provides superior detail over thermal imaging in certain climatic conditions but, like the human eye, is unable to see dedicated sensors are seated on an endless 360° pan and tilt gyro-stabilized resolver, allowing them to be positioned in any direction by the operator.

SENSOR640x480 VOX Thermal imager
RESOLUTIONHigh resolution 43x optical camera
SN RATIO52db
VIDEO OUTBNC (IP availible)
ILLUMINATIONNot required
OPERATING TEMP-30℃~ 60℃ / 30 ~ 90% RH
IP RATINGIP67
POWER10-32VDC, 360W peak, 60W normal
GYRO STABILIZEDMulti Axis Gyro
PAN ANGLE AND SPEED360°continuous pan | Variable speed: up to 60º
TEMPATURE-30C to +60C | -36F to 140F
MARINE SELAEDIP 67 NEMA 4X
HOUSING Military Grade
RADAR INTEGRATION Cue to slew (EX version)
